Drilling

Customized power units and systems for drilling installations and mobile machinery.
Soundproof power units with endothermic engines.

Control system of:

• Customized power units and systems for drilling installations and mobile machinery.
• Soundproof power units with endothermic engines.
• Pull/down – floating – push/pull control systems.
• Hole drilling control systems.
• Top drive control system.
• Rotary control system.
• Main and auxiliary winch control systems.
• Iron roughneck system.
• Mill control systems.
• Grapple bucket control systems.
• Mast control system.
• Torque wrench systems.
• Back-torque limiter systems.
• Power tong systems.
• Tilting systems.
• Skidding system for drilling rigs.

Expertise

Power: up to 1400 kW [1880 hp]
Flow rate: up to 800 l/min [210 gpm]
Pressure: up to 420 bar [6000 psi]
Temperature: -40 °C +60 °C [-40 °F +140 °F]
Certifications: according to: DNV GL, ABS, BV, RINA, LR, CCS, KR, RMRS, ATEX, SIL, PED requirements
Process Control: WPS, PQR, NDT, mechanical stress and wearing tests
Engineering international standards: UNI EN ISO 16228, UNI EN ISO 13849, IEC61508, IEC61511, ASME, EU Directives rules and specifications
Painting: up to C5M cycle, based on customer specifications
Surface treatments: phosphating, electrolytic protections, nitrocarburizing, stainlees steel surface finishing
Materials: AISI 316L, 6MO, duplex, ergal

Key Component

  • Aisi 316 valves
  • Aisi 316, duplex filters
  • Aisi 316 accumulators
  • Proportional valves IECEx, ATEX
  • Inox air/oil heat exchanger
  • Swagelok®, Gyrolok®, Ermeto® fittings
  • Closed and open loop pump & motor
  • Aisi 316 tank
  • ATEX IECEx accessories
  • High flow cartridge valves

Other Services

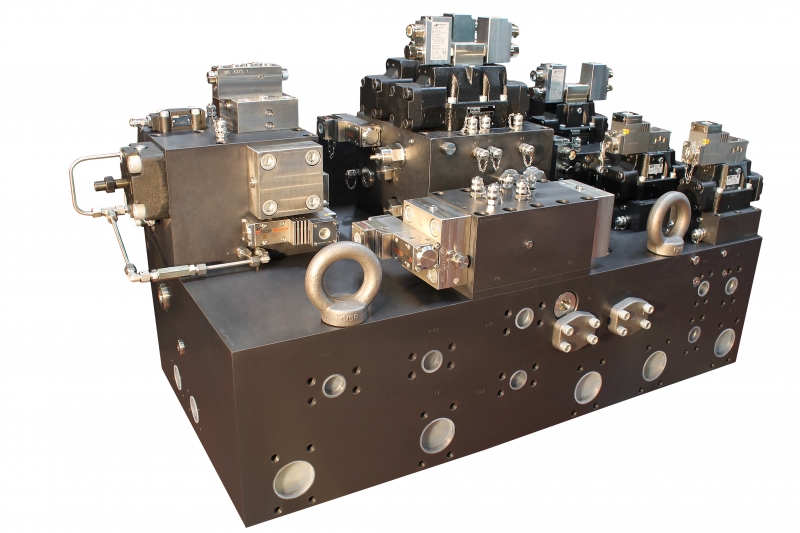

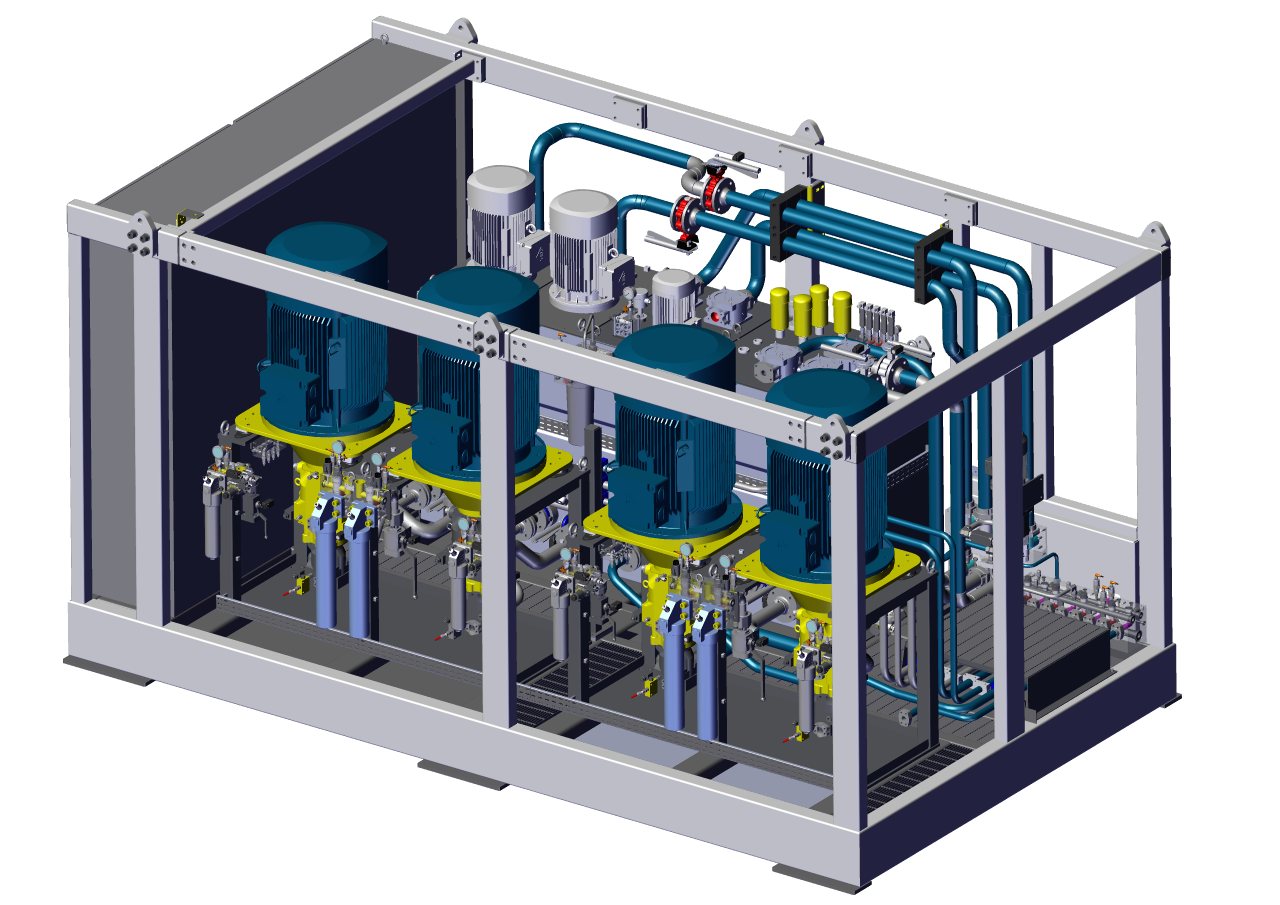

  • Manifold, HPU (Hydraulic Power Unit) and Integrated System full engineering
  • Fluid dynamics simulation
  • Structural calculation
  • Deep analysis and check of every single system parameter with specific and official report release
  • Final operational test of the whole system
  • World Wide commissioning with high level expertise technicians
  • Rigid and flexible piping and on-site full assistance
  • 40 years-experience in the hydraulic field and a very passionate team of engineers and technicians who work every day close to our customers
Technical Datasheet DRILLING
